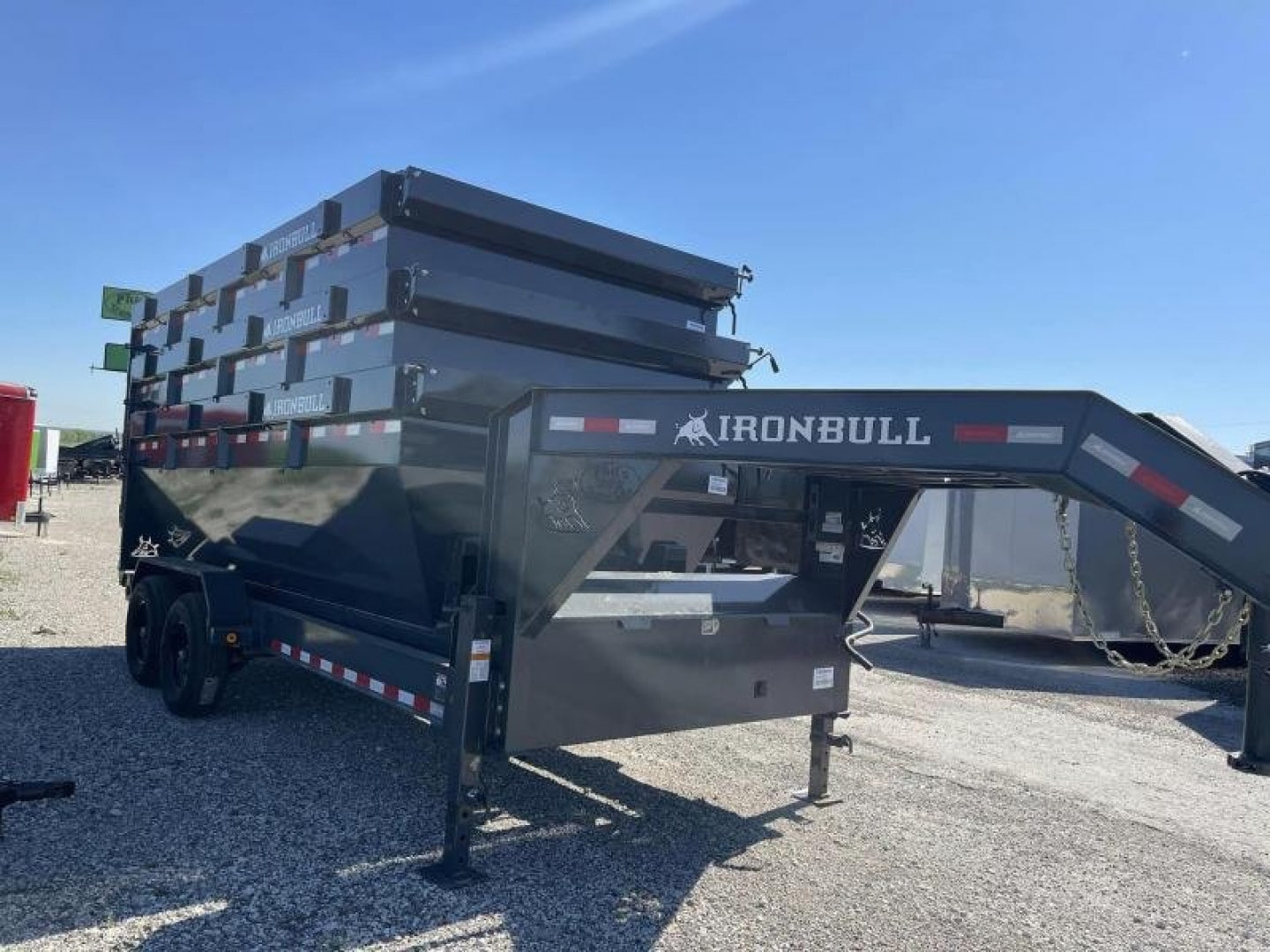

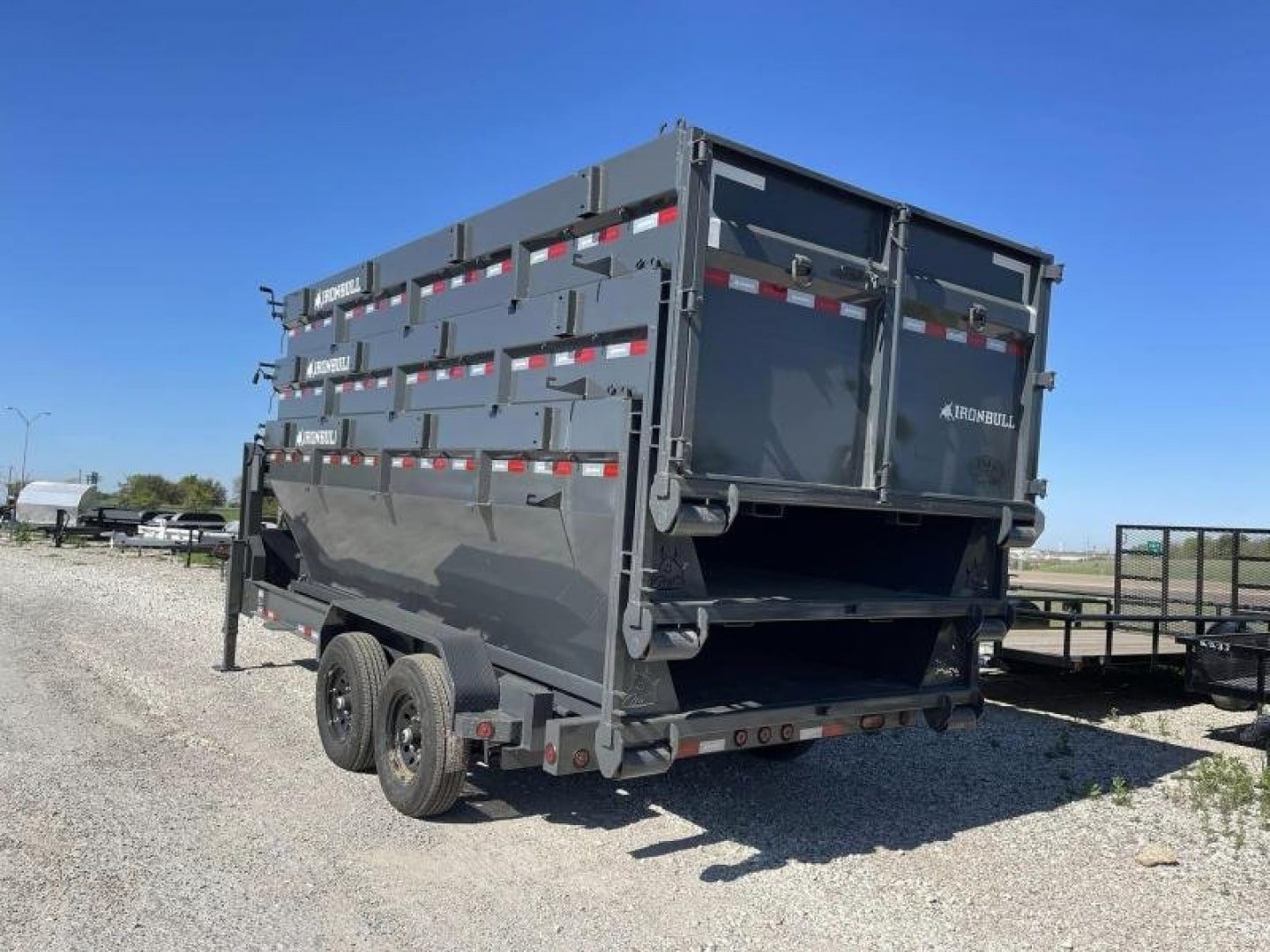

83X16 16 K GVWR 8K AXLES 17.5 Iron Bull ROLL OFF DUMP TRAILERS GOOSENECK Dump Trailer

Unit details

PHIL’S TRAILER SALES
3100 SOUTH LOOP 340
ROBINSON TEXAS 76706

254-752-6200

LIMITED TO STOCK ON HAND

THESE TRAILERS MAY STILL BE AT MANUFACTURE OR IN TRANSIT PLEASE CALL BEFRE YOU COME

2 BATTERIES
2 BOXES 1 FOR WINCH
17.5 WHEELS
2 – 8,000 Lb Axles Straight (2 Elec. Brakes )
12″ I-Beam Neck
10″ I-Beam Frame
2″ X 4″ Tube Deck
4″ X 8″ Tube Rear Bumper
Spare Tire Mount
25K 2-5/16” Adjustable Coupler
Diamond Plate Fenders (Bolt On)

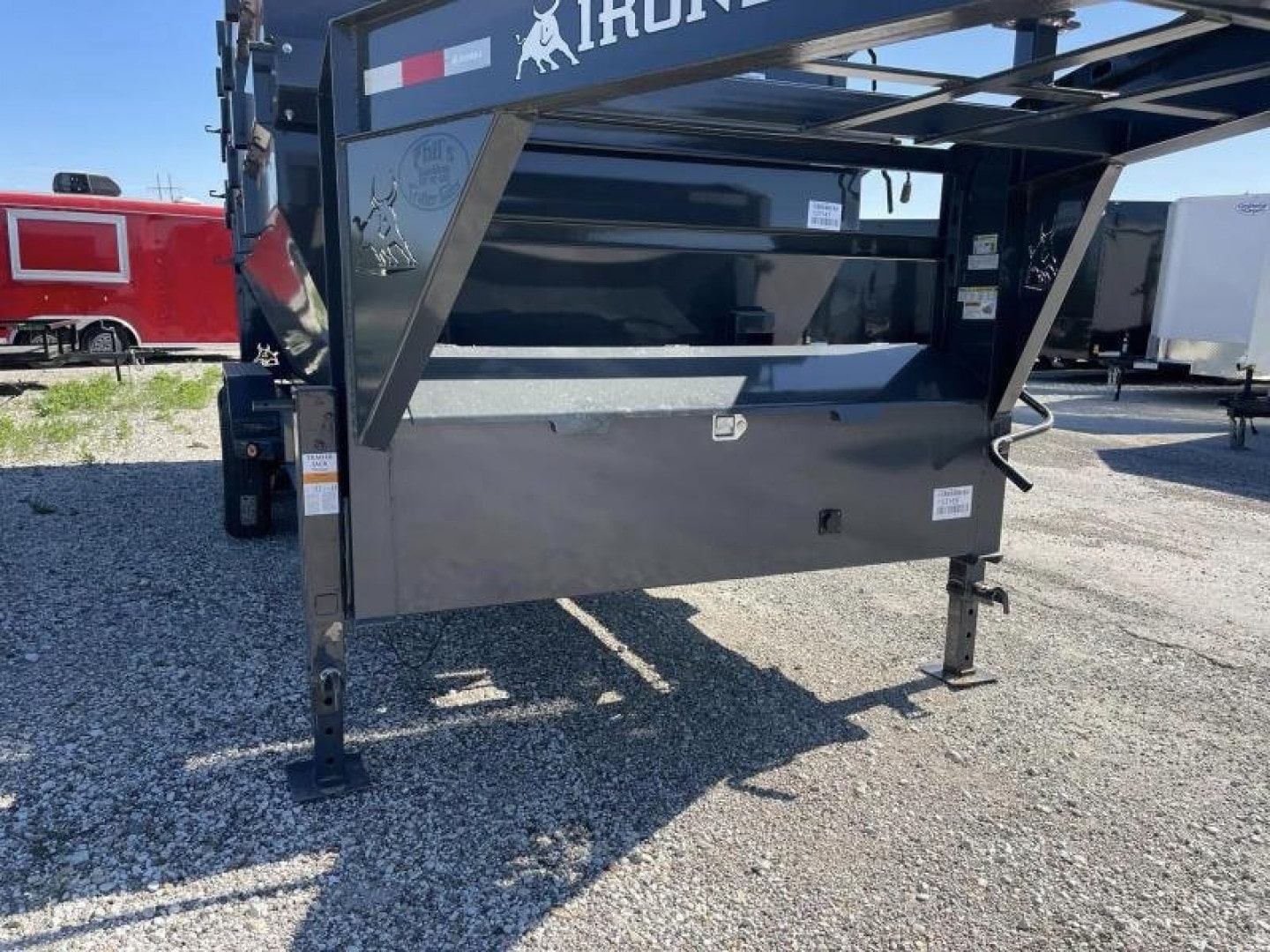

2-10K Spring Loaded Drop-Leg Jacks
Side Step Plate
Standard Wiring Harness
ST235/80 R16 LRE (10 Ply.)
22K Winch With Cable
Tool Box for Winch With 2 Batteries
Safety Chain On Deck

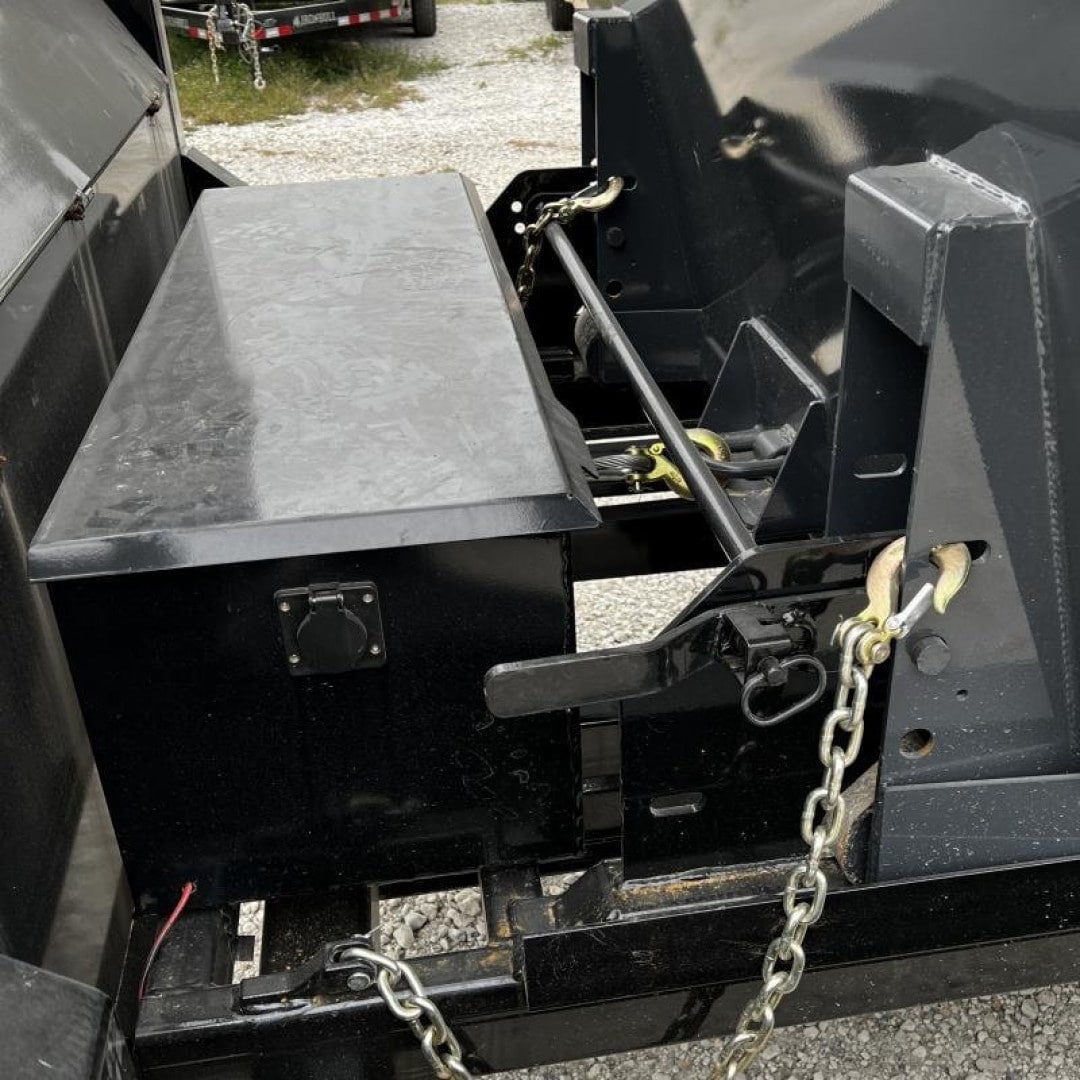

Front Tool Box

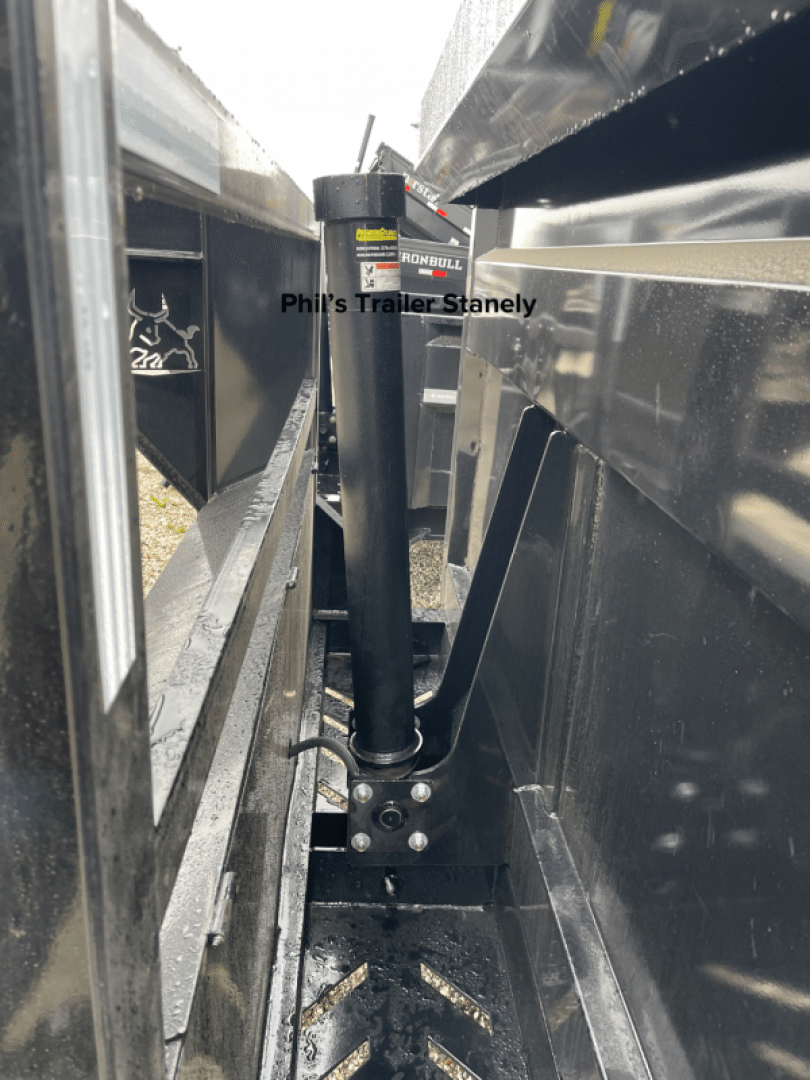

TH-520 Scissor Hoist
6” Oval LED Lights
RB (Bin) 2″ X 3″ Tube Frame
48″ 10GA Dump Sides
59 3/4” X 83” (Width X Length)
10GA Reinforced Upper side
10GA Enclosed Top Rail
1/4″ Stacking Brackets
4 1/2″ DIA Front & Rear Rollers

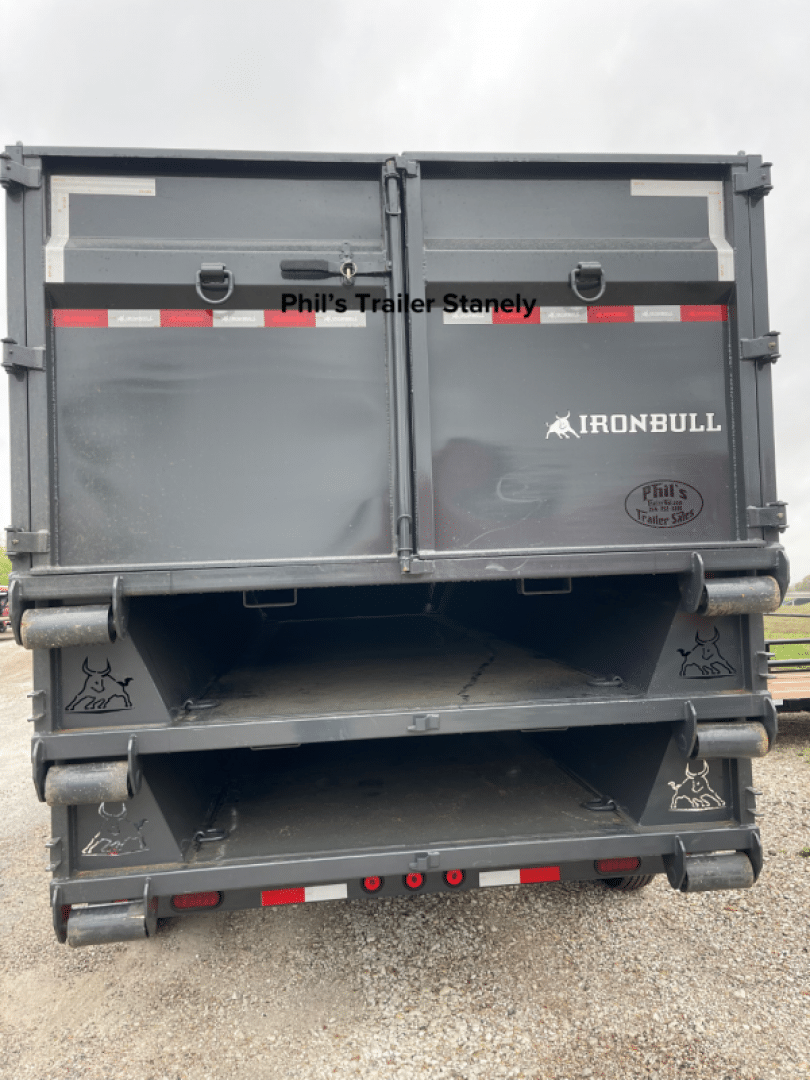

Rear Barn Doors

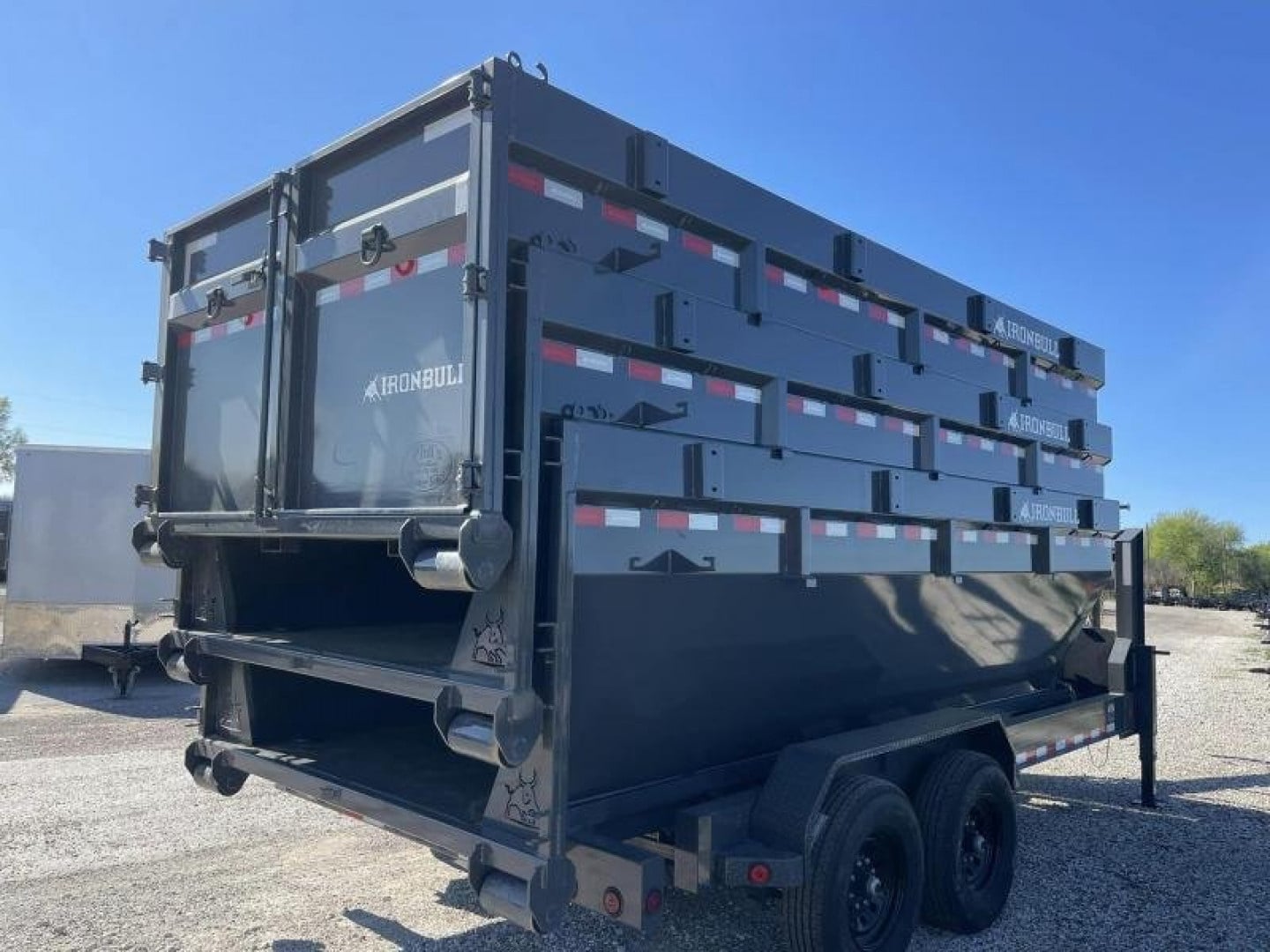

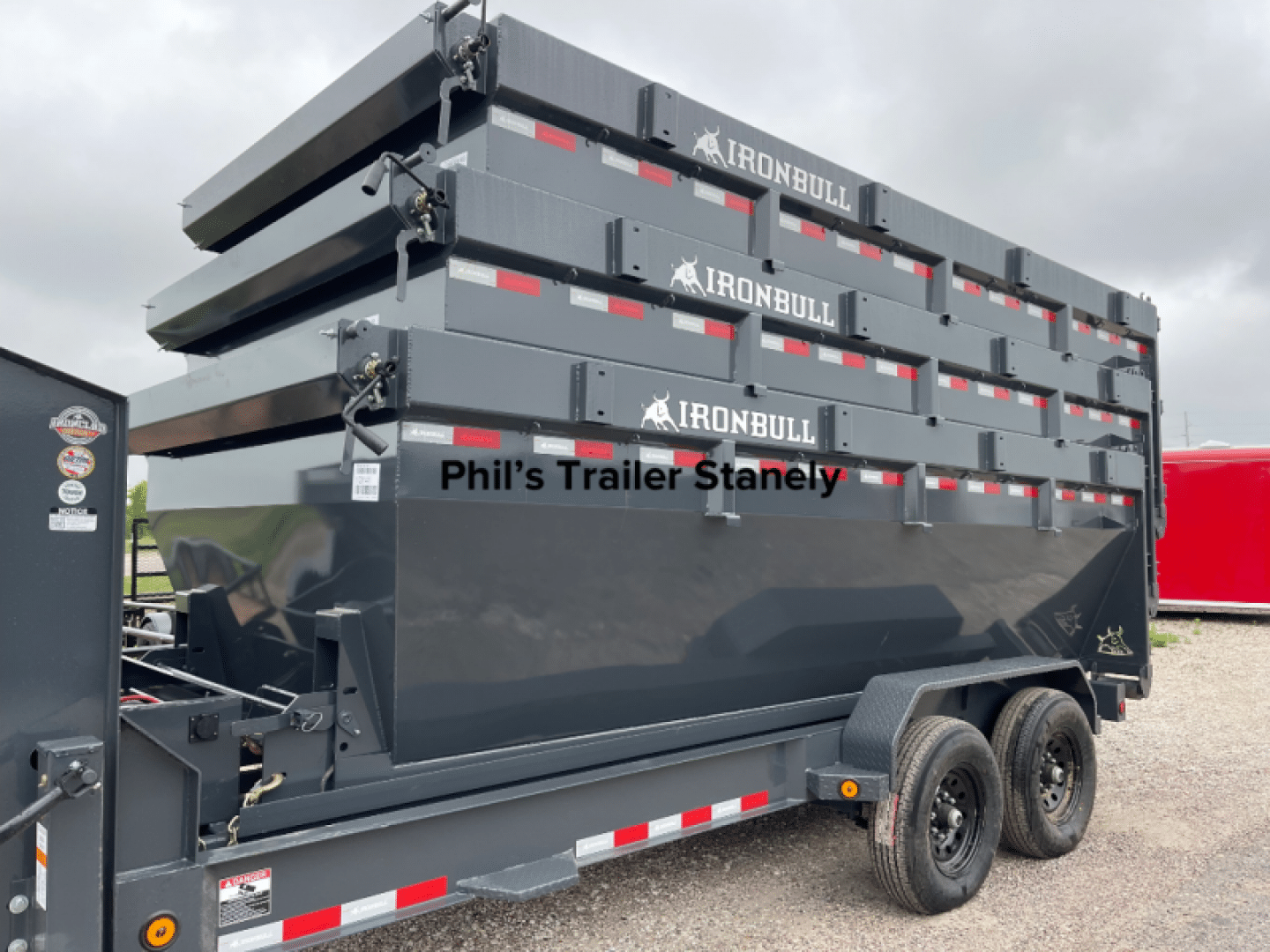

Stackable Bins
Black Powder Coat and Primer Paint
Ranch Grey Powder Coat and Primer Paint
Tan Powder Coat and Primer Paint
Front Mounted Tarp System
7″ Stake Pockets
3″ X 5/8″ Weld-On D Rings
*Weight is approximate base model. Optional features will change
**Attention:** Due to supply chain issues some standard features are subject to change without notice. If a feature is of particular importance for you, please verify with your dealer prior to purchase.

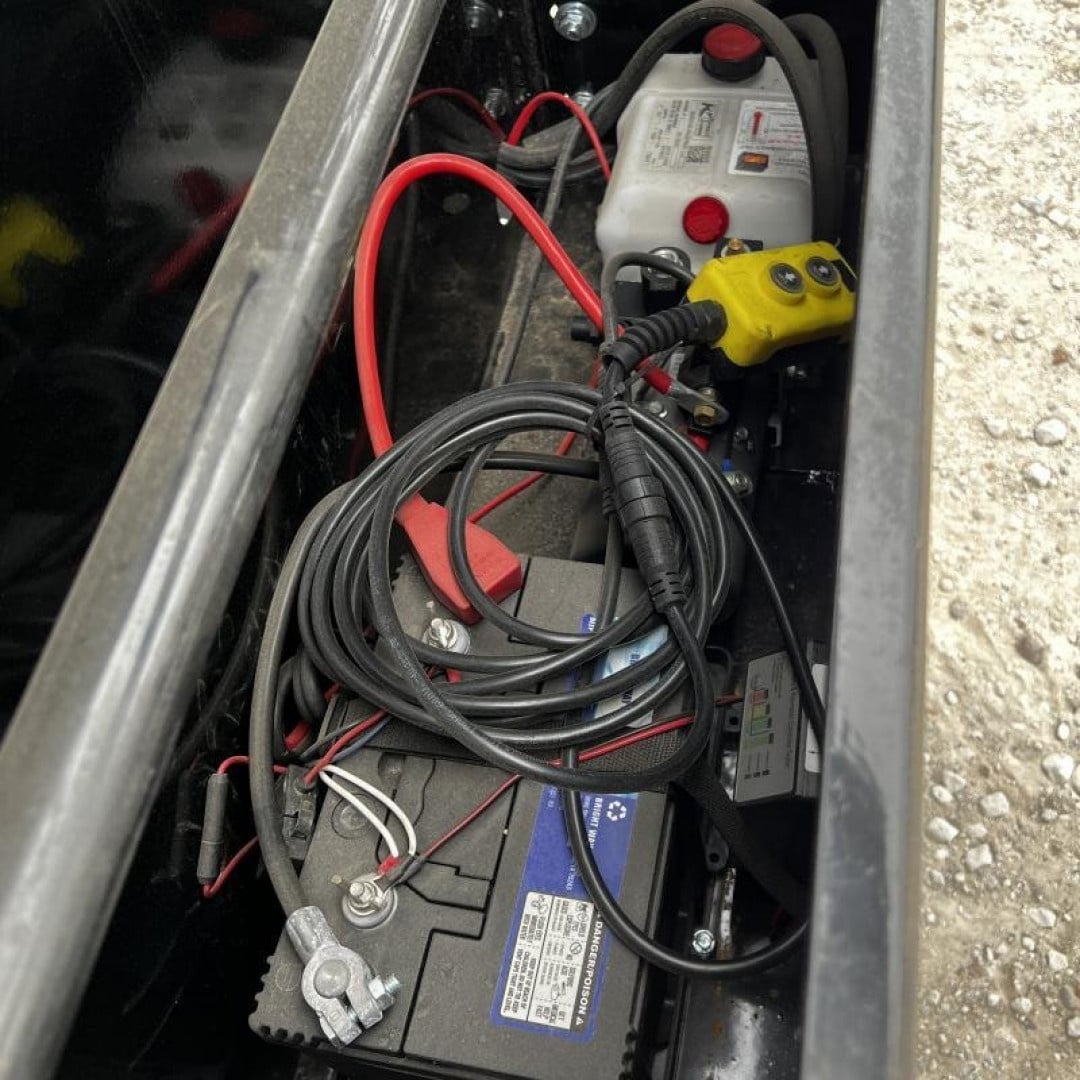

### **This trailer is loaded features! First it is built to handle 16 foot long 16 yard cannisters at price similar to others 14 foot long 14 yard cannisters. It sits on a 12″ I-beam where others use 8″. It has Iron Bull’s industry leading warranty: Two years complete coverage with roadside assistance, three years structural and axle rating varying by manufacturer. This trailer features Dexter axles with a 5 year warranty. Unlike others it houses a dependable Warrior winch with wireless and wired remote inside it’s own toolbox. The extra toolbox houses the winch, two batteries and an on board charger/tester. The main toolbox between the dual 10k jacks contains a third battery and the KTI USA hydraulic pump to power the dump scissor hoist. All three batteries will trickle charge from the truck while towing but there is on board battery chargers so all you need is an extension cord to recharge if the batteries are low from frequent dumping.**

### **Each dumpster cannister comes with it’s own on board tarp system. It is much easier to tarp dumpsters while they are on the ground before loading them on to the trailer. Dumpster cans are 10 gauge steel sides and floor.**

### **Already own a trailer system built for 14 foot cans and wish you could add some 16 foot dumpster cans? While you cannot keep your 14 foot trailer system and add 16 foot cans (the cans would hit the ground at the rear before reaching a sufficient dump angle) you can upgrade to an Iron Bull 16 foot trailer, and add some 16 foot cans. If your 14 foot cans use the standard 60 inch wide outside rail width and 36 inch on center rear locks you can pull your 14 foot cans up onto this 16 foot trailer. You would only need to add a strap at the front for safety as the 14 foot cans cannot pull all the way to the front to lock in the front lock pins.**
